Test Plugs, Air Test Plugs, plugs for air testing, line acceptance test

Multi Sized Leak Locators

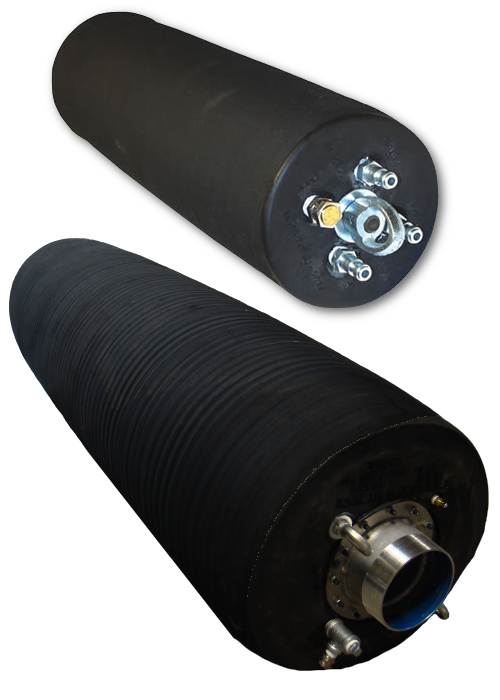

Multi-Size Air-Testing / leak locator plugs for small and large diameter pipe. Connections on the front plug for inflation, gauge read-back and air insertion. Sizes up to 96 inches.

DuPont Kevlar reinforced
Ozone protected rubber surface
Sturdy steel internal end plates with inflation and test-thru ports
Wrapped finish surface
Extra 1/4" thickness means that there is no need for a protective over-sleeve
Factory repairable bladder | No Patches | Vulcanized
Higher inflation pressure for increased safety margin; Safety Margin = the difference between the inflation pressure and the back pressure ratings
Protected with a pressure relief valve to help prevent over inflation
The 600 series plug is used as the back plug (blocking plug)
675 Series: Multi-Size Leak Locators w/ Large Bypass (Shown bottom left

Multi Sized Leak Locator Accessories:

Air acceptance test panel. Used in conjunction with the triple hose for air testing

Comes with 500 feet of triple hose. Used in conjunction with the "Space Hose".

Sizes & Specs

Leak Location Reel Instructions

Multi Sized Leak Locator Accessories (cont'd):

High flow 3/4" hose with gauge for plugs over 10-16", 3/4" port/bypass for air test.

Triple hose assembly to connect the test panel to the front plug. 25 & 50 foot lengths.

Space Hose:Attaches the front and back air test plugs & simultaneously inflates.

Compressor Hoses in 3/8", 3/4". 1/4" Test pressure read back hoses. 20, 30, 40 ft

Protective Sleeve: Reduce plug damage due to debris or damaged pipes.

Air Test: Converts plug with 2, 3, 4, 6" bypass into an air test plug

Sizes & Specifications

Air Loc Test Procedure

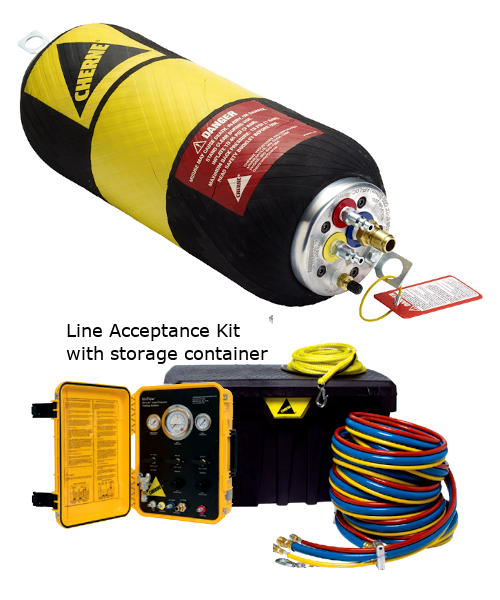

Cherne Air-Loc leak locator plugs

Air-Loc leak locator plugs are designed for both line acceptance tests as well as leak location testing. Air-Loc front plugs can also be used as blocking plugs by simply plugging the fill and read-back ports.

Features:

Eyebolts on both ends for interconnecting plugs
Easy to use quick-disconnect hose connections
Color coded inlation ports
Removable air fittings
Flexible internal hoses

Accessories for Cherne Air-Loc leak locator plugs:

Cherne® Hi-Flow Air-Loc Control Panel

Triple hose assembly to connect the Air-Loc Panel to the front plug. Color-coded hoses.

Connects front to back plug. Includes cable for attaching to the plugs.

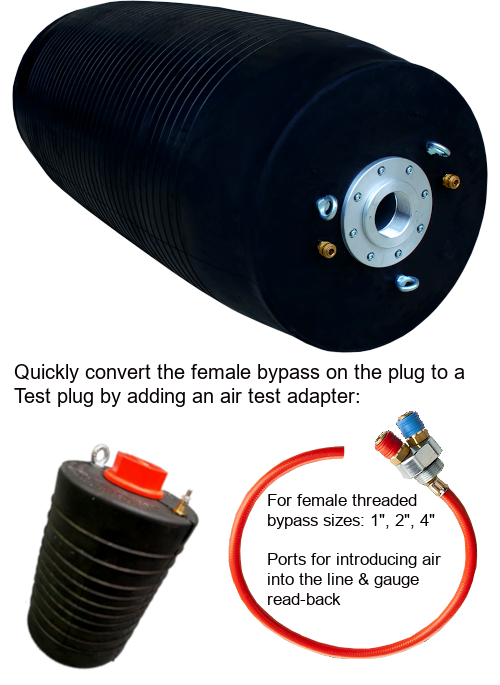

Sava Air Test Conversion for Bypass Plugs

Air test equipment available for the testing of drains and sewers that are laid underground and/or operate under pressure. Suitable for drains and sewers installed in the trenches, under the embankments or above ground.

Quickly convert the female bypass on the plug to a Test plug by adding an air test adapter which has ports for introducing air into the line & gauge read-back.
