Chain Style Hydraulic Root Cutter Kits by KEG
Quick Facts:
- Pipe Range: 2", 3", 4", 6"
- Flow Range: 8 GPM+
- Pressure Range: 1700 PSI - 4000 PSI
- Hose Sizes: 3/8"-1/2"
Micro Chain Cutter:
Advantages:
- Easily configured for multiple jobs
- Use in sweeping 90 degree or 45 degree elbows
- Kit includes Case, Tools and Manual
- Clean with soap and water
Applications:
- 2", 3", 4" Pipes (6" w/optional skid)
- Plumbing Applications
- Offsets, Pipe Rips, Services, Laterals, Small Pipes
- Root Removal in Laterals & Sanitary Service Lines
- Scale and Rust Removal
- Use with 1/2" hose; 1/2" swivel included
Tech Specs:
- No skid required for 2" & 3" applications
- Individual skid for 4" applications provided
- Individual skid for 6" applications (optional)
- Lubrication is not required
- Pump minimum of 8 GPM & 1700 PSI required
- Tier Two Nozzle
- Titanium ceramic inserts included
- 6 feet of chain included
- Pulling device available (optional)
- 90 degree lateral applications should not utilize the guide carriage skids
- Hose Sizes: 3/8"-1/2"
Quick Facts:
- Pipe Range: 4", 6", 8", 10"
- Flow Range: 18 GPM - 60 GPM
- Pressure Range: 1700 PSI - 4000 PSI
- Hose Sizes: 1/2", 3/4", 1"

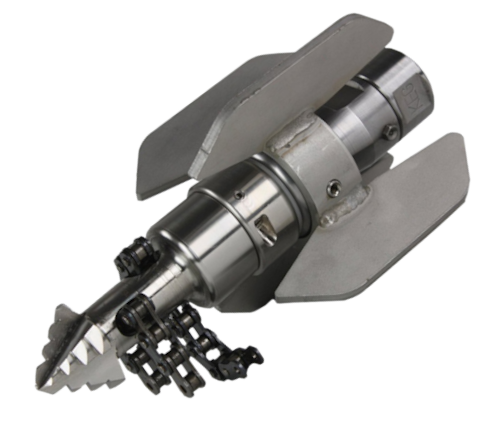

Mini Chain Cutter:
Advantages:
- Easily configured for multiple jobs
- Use with 1/2", 3/4", & 1" hose applications
- Kit includes Case, Tools and Manual
- Clean with soap and water
Applications:
- 4", 6", & 8" pipes (10" optional)
- Sanitary, Storm Applications: Roots, Scaling, Grease
- Root Removal in Laterals & Sanitary Service Lines
- Scale and Rust Removal
- Removal of Protruding Taps
Tech Specs:
- Individual skid for 4", 6" & 8" pipe (10" optional skid available)
- Lubrication is not required
- Pump minimum of 18 GPM & 1700 PSI required
- Flow Range: 18 GPM - 60 GPM
- Pressure Range: 1700 PSI - 4000 PSI
- Tier Two Nozzle
- Titanium ceramic inserts included
- 6 feet of chain included
- Reducers or expanders available (optional)
- Hose Sizes: 1/2", 3/4", 1"
- 3/4" swivel is the standard configuration
Quick Facts:
- Pipe Range: 6"-24"
- Flow Range: 40 GPM - 100 GPM
- Pressure Range: 1700 PSI - 3000 PSI
- Hose Sizes: 3/4", 1" , 1 1/4"
Applications:
- 6"-16" pipe range; optional expansion kit up to 24"
- Sanitary, Storm Applications: Roots, Scaling, Rust, Grease, Minerals, Protruding Taps, Concrete
- Compatible with all pipe (PVC, Clay, Iron, Concrete)
- Use with 3/4", 1", 1 1/4" hose
Super Cutter Plus 150:
Advantages:
- Easily configured for multiple jobs
- Kit includes Case, Tools and Manual
- Clean with soap and water
- Stainless steel construction
- Water driven design
- High speed, High torque
- Roller chain is forgiving on pipe walls
- Operates in egg-shaped pipe
- Changeable Cross Cutter and Rotating Inserts
Tech Specs:
- Skids and distance plates included for pipes 6"-16"
- No lubrication for the main body required
- Pump flow minimum of 40 GPM & 1700 PSI required
- Tier Two Nozzle
- Titanium ceramic inserts included
- 15 feet of chain included
- 2 separate chains for cutting
- 2,500-10,000 RPM
- 1" swivel is the standard configuration
- Reducers or expanders available (optional)
- Chain blocks for hardened deposits (optional)
- Spray bar attachments (optional)
- Pulling device (optional)
Quick Facts:
- Pipe Range: 8"-48"
- Flow Range: 50 GPM - 120 GPM
- Pressure Range: 1700 PSI - 3000 PSI
- Hose Sizes: 3/4", 1" , 1 1/4"
Applications:
- 8"-20" pipe range; optional expansion kit up to 48"
- Sanitary, Storm Applications: Roots, Scaling, Rust, Grease, Minerals, Protruding Taps, Concrete
- Compatible with all pipe (PVC, Clay, Iron, Concrete)
- Use with 3/4", 1", 1 1/4" hose

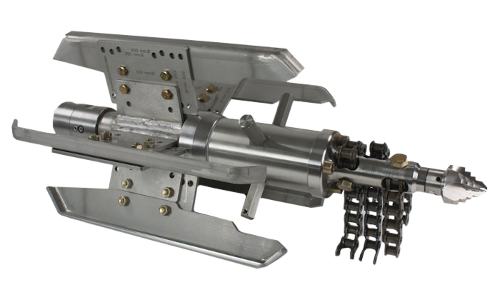

Super Cutter Plus 200:
Advantages:
- Easily configured for multiple jobs
- Kit includes Case, Tools and Manual
- Clean with soap and water
- Stainless steel construction
- Water driven design
- High speed, High torque
- Roller chain is forgiving on pipe walls
- Operates in egg-shaped pipe
- Changeable Cross Cutter and Rotating Inserts
Tech Specs:
- Skids and distance plates included for pipes 8"-20"
- No lubrication for the main body required
- Pump flow minimum of 50 GPM & 1200 PSI required
- Tier Two Nozzle
- Titanium ceramic inserts included
- 15 feet of chain included
- 3 separate chains for cutting
- 2,500-10,000 RPM
- 1" swivel is the standard configuration
- Reducers or expanders available (optional)
- Chain blocks for hardened deposits (optional)
- Spray bar attachments (optional)
- Pulling device (optional)
Quick Facts:
- Pipe Range: 6"-48"
- Flow Range: 60 GPM - 150 GPM
- Pressure Range: 1700 PSI - 3000 PSI
- Hose Sizes: 1" , 1 1/4", 1 1/2"
Applications:
- 6"-16" pipe range; optional expansion kits up to 48"
- Sanitary, Storm Applications: Roots, Scaling, Rust, Grease, Minerals, Protruding Taps, Concrete
- Compatible with all pipe (PVC, Clay, Iron, Concrete)
- Use with 31" , 1 1/4", 1 1/2" hose

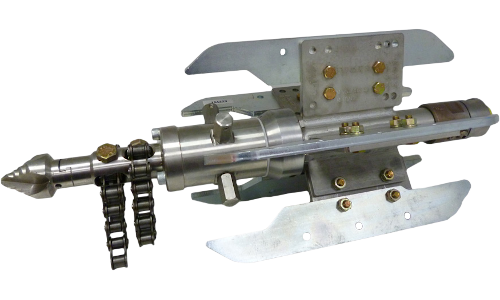

Supernova 4000:
Advantages:
- 6"- 48" pipe all in one cutter
- Easily configured for multiple jobs
- Kit includes Case, Tools and Manual
- Clean with soap and water
- Stainless steel construction
- High speed, High torque water driven design
- Roller chain is forgiving on pipe walls
- Operates in egg-shaped pipe
Tech Specs:
- Skids and distance plates included for pipes 6"-16"
- No lubrication for the main body required
- Pump flow minimum of 60 GPM & 1700 PSI required
- Tier Two Nozzle
- Titanium ceramic inserts included
- 15 feet of chain included
- 2 heavy duty roller chains for cutting
- 2,500-10,000 RPM
- 1 1/4" swivel is the standard configuration
- Reducers or expanders available (optional)
- Chain blocks for hardened deposits (optional)
- Spray bar attachments (optional)
- Pulling device (optional)
